Insulated Aluminum Frame Glass Overhead Garage Doors Wholesale Supplier

This insulated aluminum frame glass garage door delivers strong weather resistance with corrosion protection and anti-rust properties. CHI provides a rich product portfolio with diverse glass options and a wide selection of aluminum frame colors, enabling our commercial partners flexible design choices.

Features

Aluminum frame maintenance-free & weather-resistant

50mm Panel thickness, 3mm Frame Thickness

A variety of glass styles and customized frame finishes options

Air infiltration buttom seals against environmental corrosion

Only for bulk orders, MOQ required

GET A QUOTE

Colors

Textures

Styles

Windows

Parts

With 18 years of experience as a glass garage doors manufacturer, CHI uses high-strength tempered glass with excellent impact resistance and offers a wide selection of glass options, including clear, black, frosted, tinted, mirrored, reflective, laminated, double-layer, and backside-with-film, etc. If these options still do not meet your requirements, customized solutions are also available to accommodate your specific project needs.
Glass Garage Door Frame Glass Options

CHI empowers hundreds of customers across more than 80 countries and regions worldwide, providing aluminum full view garage doors tailored to local market preferences and project requirements. The aluminum frame features a durable powder-coated finish and is available in a range of popular colors. To meet increasingly diverse architectural and branding demands, we also offer customized frame color solutions, giving customers greater design flexibility.
Glass Garage Door Frame Color Options

As a globally renowned full view garage door manufacturer, CHI integrates modern minimalist design into both frame full view and frameless full view styles. Expansive glass panels maximize natural daylight, while the aluminum framework combines lightweight elegance with superior corrosion resistance. A diverse selection of glass allows for a refined balance between transparency and privacy, delivering an upscale, visually striking architectural statement.
Glass Garage Door Style Options

As a one-stop glass garage doors supplier, CHI offers a comprehensive and stunning array of window panel options, which can also be fully customized to meet your specific requirements. You have the flexibility to position the windows anywhere on door body, allowing you to create a truly unique and personalized aesthetic.
Garage Door Window Panel Options

Whether you are a full view garage door wholesale distributor, contractor, or installation company anywhere in the world, CHI provides you with the highest-quality garage door hardware parts that meet international standards, so you no longer need to worry about product specification incompatibility.

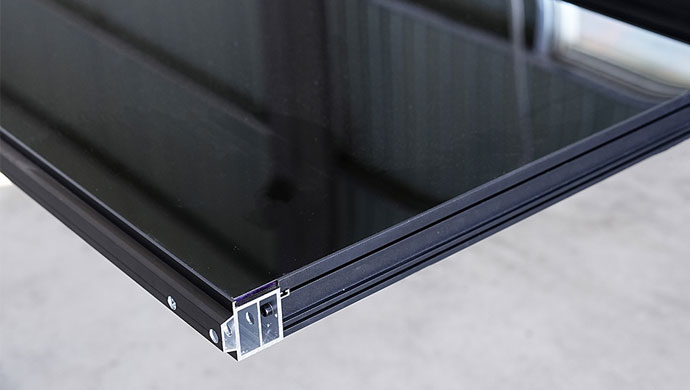

PRODUCT DETAIL

This aluminum garage doors system is engineered with a reinforced aluminum frame structural profile that delivers outstanding impact resistance, allowing the system to remain rigid and secure without compromising smooth functionality. In addition, the corrosion-resistant surface treatment significantly enhances durability in harsh environments, making it suitable for long-term architectural applications. In glass garage door wholesale applications, this balance of strength and aesthetics is especially important for high-class residential projects where consistency is required.

As the leader garage door manufacturer, CHI offers a highly comprehensive portfolio covering both framed and frameless systems, enabling flexible configuration for different architectural and project requirements. For glass garage door wholesale, our range of glass garage doors includes extensive glass options, ensuring strong adaptability across diverse design preferences. At the same time, aluminum garage doors are available in multiple customizable frame colors, allowing full alignment with branding or architectural themes. In aluminum garage doors wholesale supplier cooperation, this flexibility helps streamline sourcing decisions and supports long-term project consistency across different markets.

Product Specifications

Main Size

8'x7', 8'x8', 9'x7', 9'x8', 16'x7', 16'x8', customized

Panel Construction

Hollow aluminum frame + glass, Insulated aluminum frame + glass

Panel Thickness

50mm (2"), customized

Frame Thickness

3mm, customized

Panel Width

457mm (18"), 533mm (21"), 610mm (24")

Panel Length

Max to 12m (39'), customized

Frame Colour

White, black, brown, chocolate, bronze, customized

Glass Options

5mm tempered glass, laminated safety glass

Glass Color

Clear, black, frosted, mirrored, reflective, laminated, and backside with film

Accessory

Torsion spring, tracks, hinges, rollers, brackets, cables, other accessories

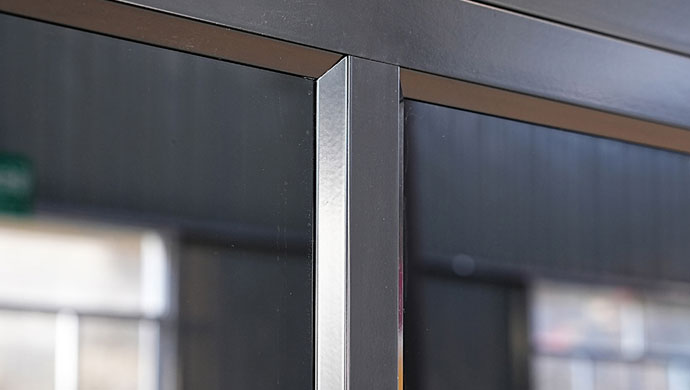

Aluminum Garage Door Advantages

Tempered Glass Section

We uses high-strength tempered safety glass which offers excellent impact, heat, scratch, and wear resistance performance, also great load-bearing and easy clean.

Aluminum Frame Section

10-year warranty powder-coating aluminum frames with multiple colors, offer exceptional weather resistance; also choose aluminum garage doors, "less is more".

Polyurethane Section (Optional)

High-density PU foam with 55 kg/m³ meeting international aluminum garage doors standards enhances thermal rating can be up to R18, noise reduction, and bubble-free.

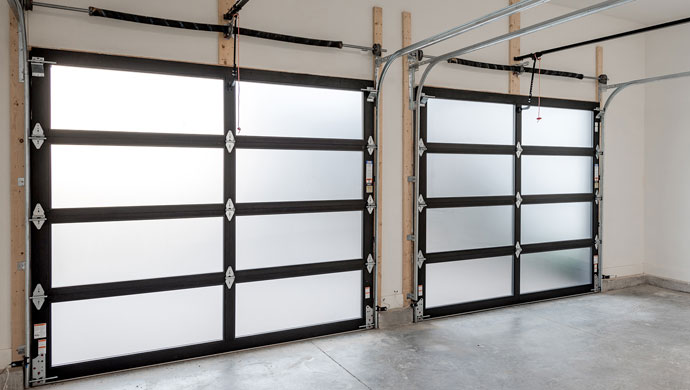

Garage Door Hardware Parts Kit

Complete hardware solutions are available for standard and customized glass garage door systems, including hinges, rollers, brackets, lift cables, cable drums and related parts.

Durable Garage Door Springs

Manufactured from 82B high-carbon steel, our garage door springs are engineered for durability, offering up to 16,000 standard-cycle and 25,000 high-cycle performance.

Smooth Garage Door Tracks

Track systems are supplied with a standard 2" profile and 1.5mm thickness, with custom options available; R12" and R15" radius configurations support different lift ways.

Garage Doors Supplier

Strict Quality Control

A total of 15 sophisticated processes, including roll-forming, curing, cooling, pre-punching, welding, precise tolerance control, etc., work together to ensure top-quality products.

Extensive Manufacturing Experience

Leveraging 18 years of mature manufacturing experience, CHI maintains strict quality control over tempered glass, aluminum profiles, and ΔE color consistency, etc.

Complete Test Report

More than 22 tests: Manual, motorized, lifting force, force limit, fall prevention, DASMA 108 wind load compliance, low-temperature and noise sampling tests, etc.

Bulk Purchase Savings

CHI offers competitive pricing for bulk orders and adaptable cooperation terms, enabling aluminum garage doors commercial buyers to lower long-term procurement expenses.

Complete Range and Customization

The product portfolio fully covers all popular styles, dimensions, colors, and window configurations, accommodating customized glass garage door specifications.

Flexible and Safe Delivery

98%+ OTIF and 99%+ fill rate, samples in 14 days and standard doors in 15–35 days; anti-collision wooden crates and cold-region packaging keep damage rates ≤0.3%.

FREQUENTLY ASKED QUESTIONS

How long do aluminum glass garage frame doors last?

The lifespan of an aluminum glass garage door frame can vary depending on a number of factors, including the material quality, environmental factors, maintenance frequency, number of uses, installation quality, etc. In the context of a aluminum garage doors, on average, CHI believes that a well-maintained aluminum and glass garage door will last 15 to 30 years or more.

It's important to note that individual experiences may vary and the lifespan of a specific garage door will depend on the unique circumstances in which it is installed and used. Regularly checking for signs of wear and addressing issues promptly can help ensure your aluminum glass garage door frame continues to operate reliably for a longer period of time. You can also consult us to get more accurate results.

Will insulated glass garage doors affect durability?

These safety features are designed to prioritize user safety without compromising the overall durability of the insulated glass garage door. Durability mainly considers the following points: material, reinforcement and construction, compliance with standards, durability testing, regular maintenance, user responsibility, professional installation, etc. In the context of a glass garage door wholesale supplier, these factors are especially important for ensuring consistent product performance across different project requirements and installation environments. Well-designed insulated glass garage doors are designed to increase safety without compromising durability. If you have specific questions please ask us and we can provide additional insights into customizing your specific insulated glass garage doors model.

How does delivery logistics impact business partnerships in the glass overhead garage doors industry?

Delivery logistics are critical, as the timely and reliable transport of glass overhead garage doors directly influences inventory management and project planning. For garage door wholesale, CHI provides secure packaging, optimized pallet loading solutions, and clear labeling—measures that help streamline warehouse handling and distribution processes. Flexible shipping options, staggered delivery services, and expedited shipping mechanisms for high-demand items all serve to significantly boost operational efficiency. Predictable glass overhead garage doors delivery schedules—coupled with an exceptionally low rate of product damage—empower wholesalers, distributors, commercial bulk buyers, and contractors to efficiently plan their installation projects and sales campaigns. As a aluminum garage doors wholesale supplier, CHI supports this process with extensive experience in international shipping and robust logistics capabilities, ensuring reliability across every shipment. With our extensive experience in international shipping and robust logistics capabilities, we are committed to upholding the trust placed in us; we strive to foster mutual growth with our partners and assist them in fulfilling their service commitments to their own clientele.
